Spectrum Smart wifi relay for home automation

WiFi operated Relay Switch

Control a wide range of home and office devices, (lights, garage doors, curtains, water heaters, air conditioners, etc.) from anywhere, with the smallest WiFi-operated relay switch.

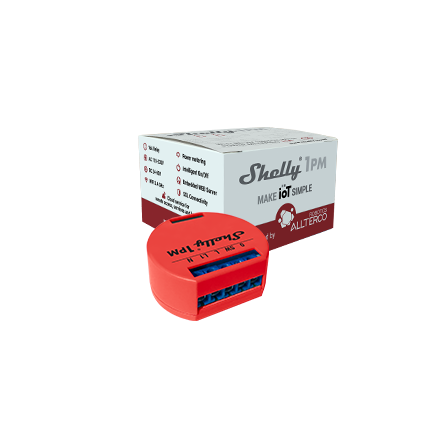

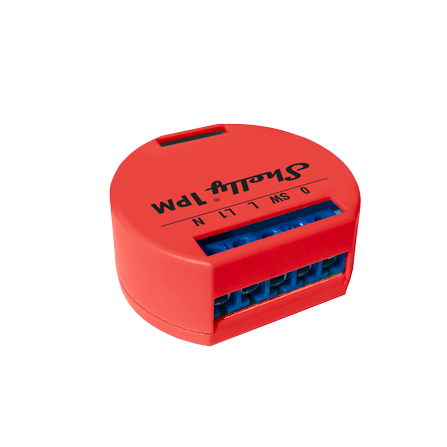

Shelly 1PM

It has a web server.

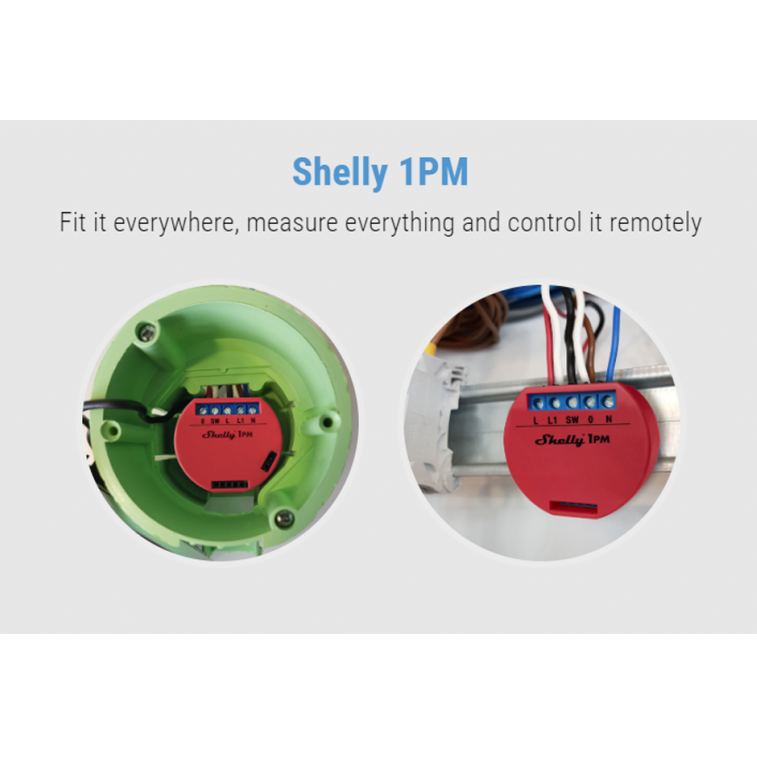

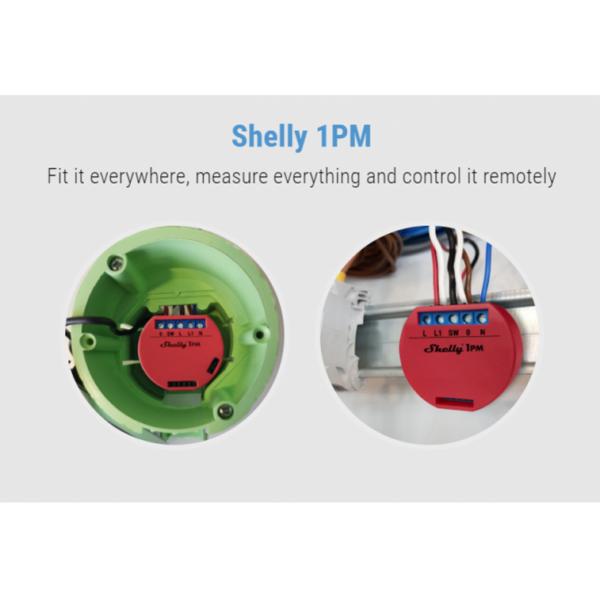

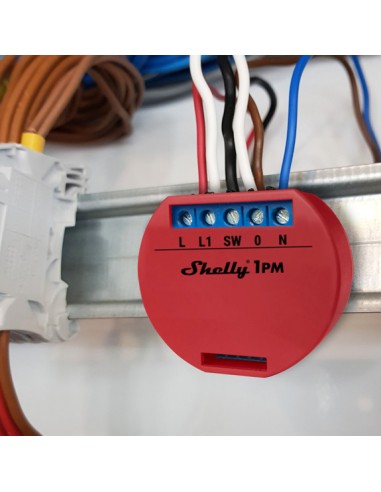

Designed for installation in a limited space, such as wall mounts.

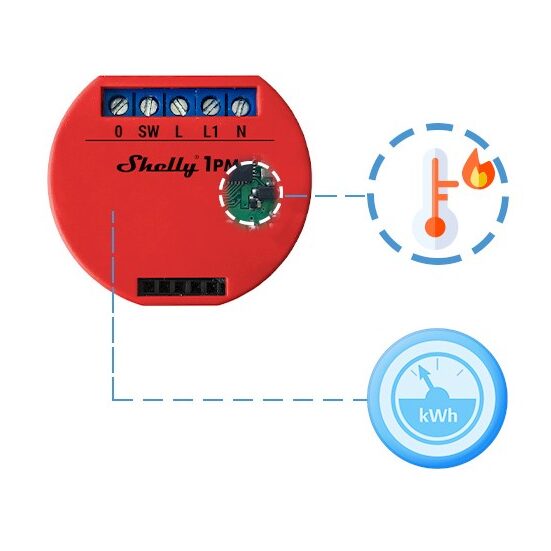

Maximum electrical load is 3.5 kW, with energy consumption monitoring.
overload, and temperature protection.
It can work by itself.
Or it can work as another automation system’s component.
So it works with local home automation controller.

Standard warranty(included in purchase price):

12 month warranty due to device malfunctions.

Specifications

POWER
Power supply AC	110-230V ±10%, 50/60Hz
Power supply DC	24 – 60V
SPECIAL FUNCTIONS
Dry contacts	No
Roller shutter mode	No
Device temperature protection	Yes
Overload protection	Yes
Power measurement	Yes
Working without a neutral line	No
FEATURES
Channels	1 Channel
Maximum load	16A
Operational temperature	0°C to + 40 °C
Device power consumption	< 1 W
Intelligent On/Off	Yes
Local and remote control	Yes
Sunrise/Sunset	Yes
Weekly Schedule	Yes
UL Listed option	No
CONNECTIVITY
Wireless	Yes
Wi-Fi Protocol	802.11 b/g/n
Wi-Fi Radio frequency	2400 – 2484 MHz
Wi-Fi Radio signal power	1mW
Wi-Fi Range	up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
DIMENSIONS
Size	41mm x 36mm x 17mm
