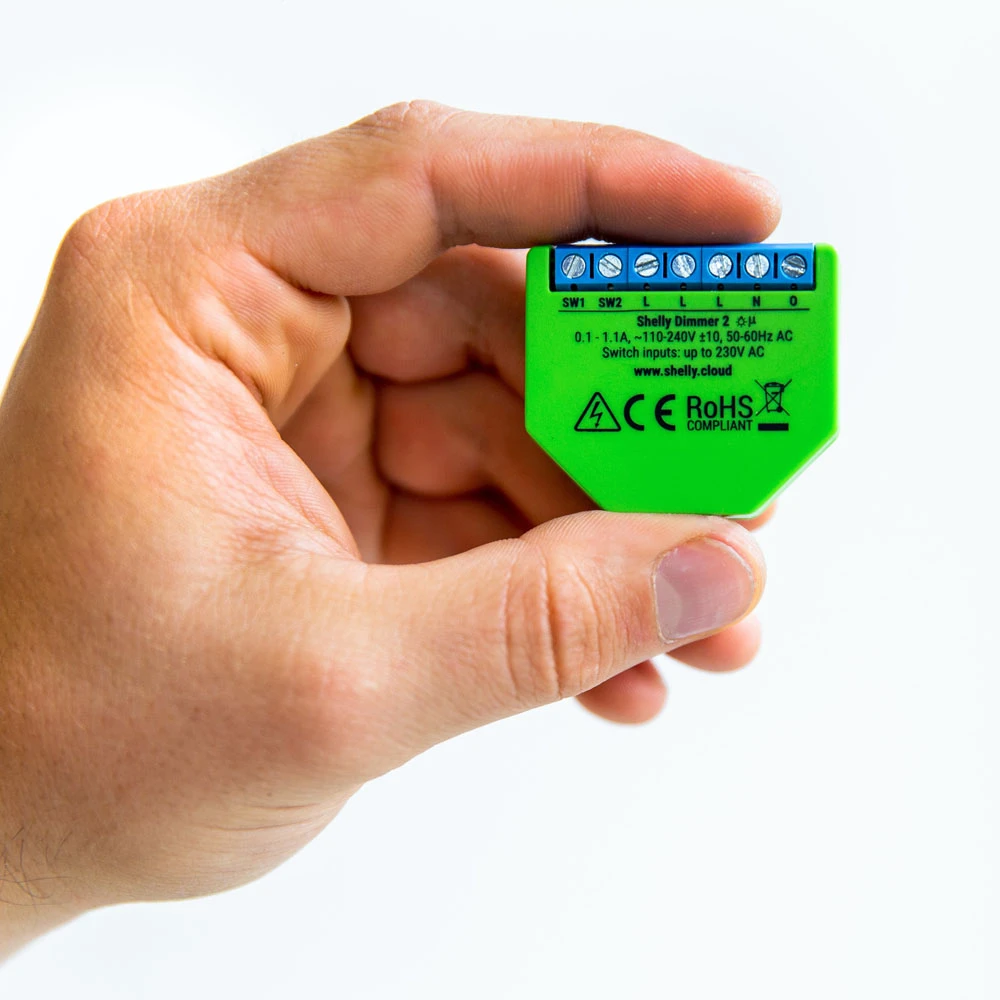

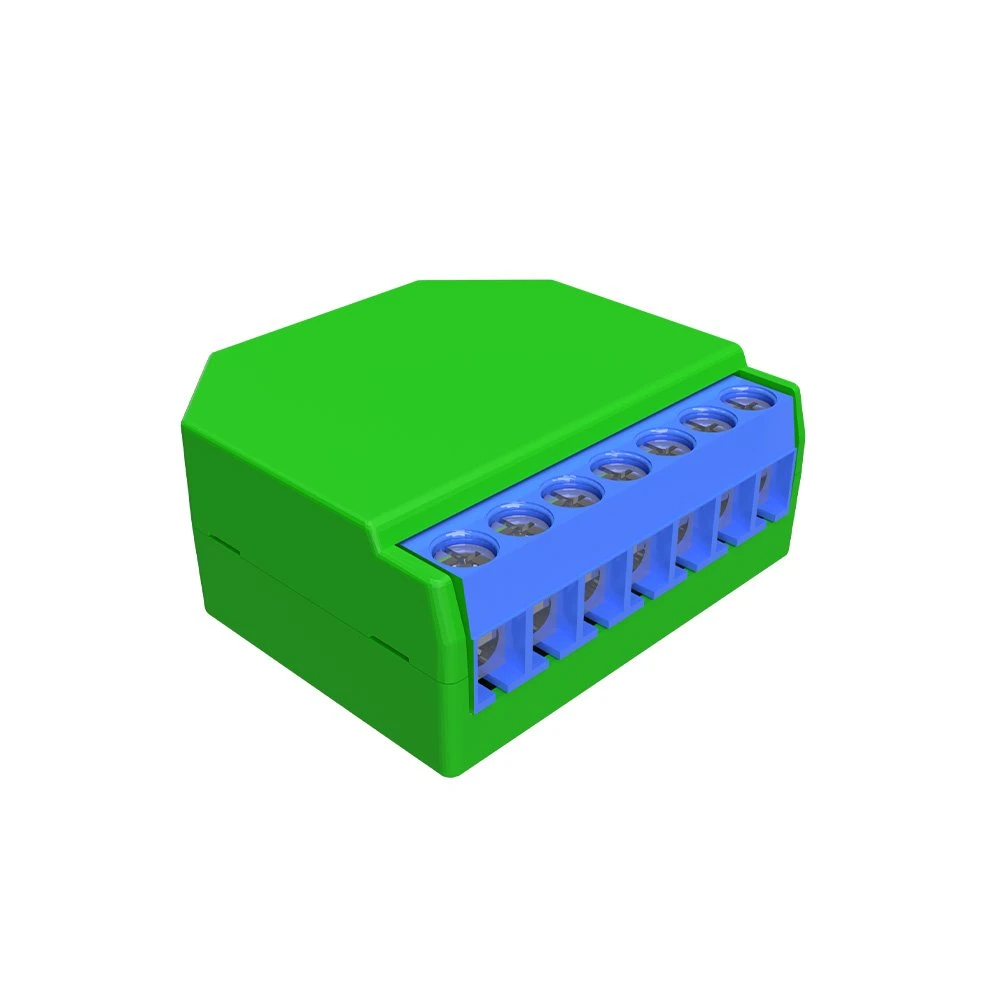

Smart wifi dimmer for home automation - Shelly Dimmer 2

WiFi-operated dimmer

Control a wide range of halogen lights, dimmable LED and ferromagnetic transformers from anywhere with the smallest WiFi-operated dimmer in the world – Shelly Dimmer2 working without a neutral line.

Shelly Dimmer2

has an embedded webserver
has been designed for installation in a limited space, such as wall mounts, electrical control panels, etc.
It can work by itself.
Or it can work as another automation system’s component.
So it works with local home automation controller.

Standard warranty(included in purchase price):

12 month warranty due to device malfunctions.

Specifications

POWER
Power supply AC	110-230V ±10%, 50/60Hz
SPECIAL FUNCTIONS
Device temperature protection	Yes
Overload protection	Yes
Power measurement	Yes
Dimming	Yes
Dimmable LED	50-200VA / 10W – 200W
Incandescent and halogen light sources	10-220W
Resistive-inductive loads ferromagnetic transformers	50-150VA
Working without a neutral line	Yes
FEATURES
Colour changing	No
Predefined effects	Yes
Channels	1 Channel
Operational temperature	0°C to + 35 °C
Device power consumption	< 1 W
Intelligent On/Off	Yes
Local and remote control	Yes
Sunrise/Sunset	Yes
Weekly Schedule	Yes
UL Listed option	No
CONNECTIVITY
Wireless	Yes
Wi-Fi Protocol	802.11 b/g/n
Wi-Fi Radio frequency	2400 – 2484 MHz
Wi-Fi Radio signal power	1mW
Wi-Fi Range	up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
DIMENSIONS
Size	42mm x 36mm x 14 mm
