Shelly 3EM – WiFi Controlled Energy Meter

550.00 د.إ مع الضريبة

Wi-Fi Operated 3 Phase Energy Meter and Contactor Control

  • Three independent measuring channels up to 120A each.
  •  One contactor control (or load up to 10A).
  •  365 days of internal memory in case Wi-Fi is not available.
  •  Voltage measurement and configurable alarm reporting.

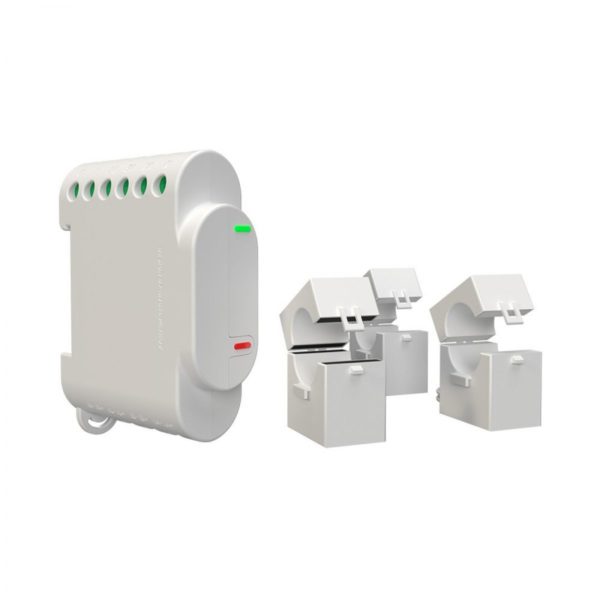

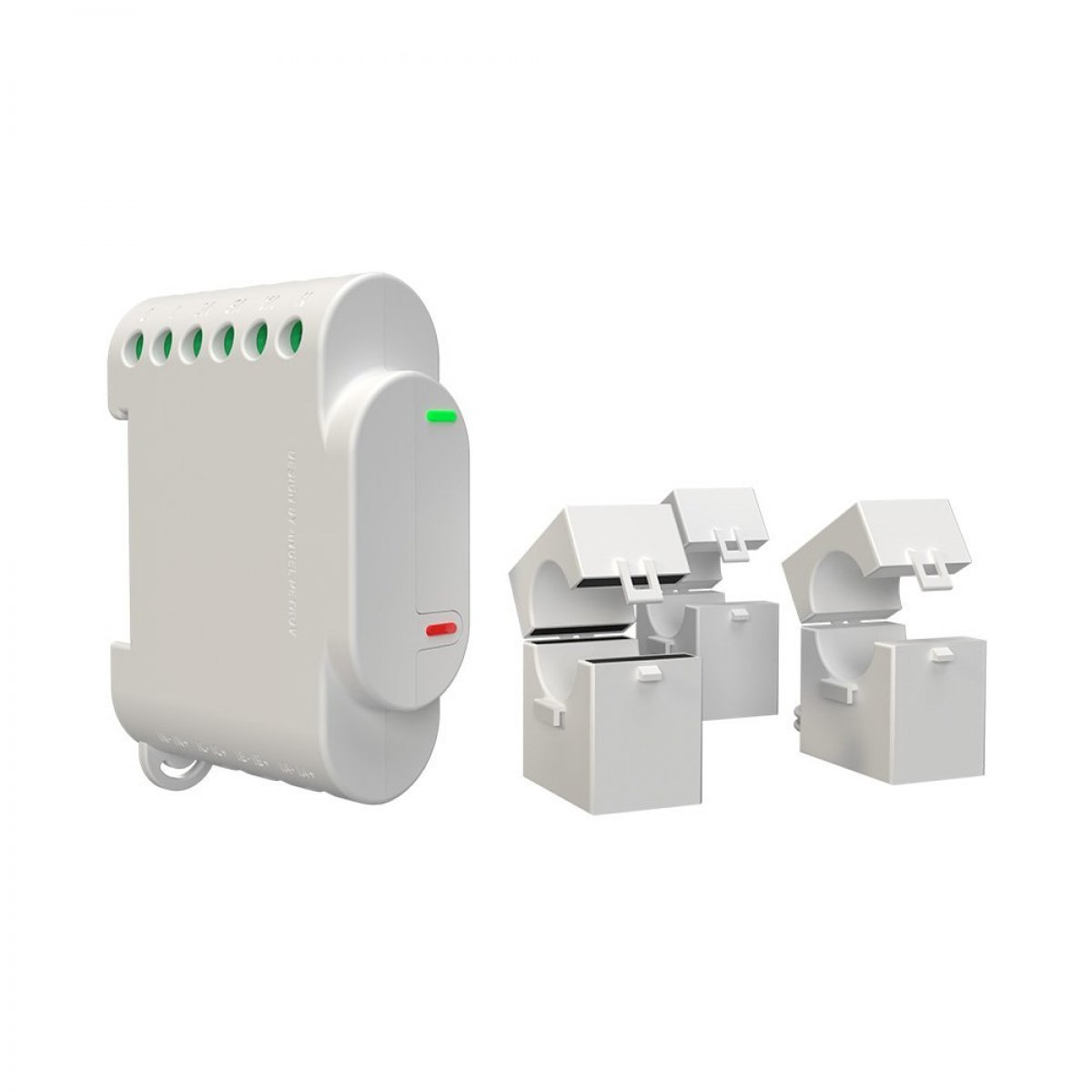

  •  Included 3x Current Transformers 120A.

Standard warranty(included in purchase price):

12 month warranty due to device malfunctions.

الوزن .460 كيلوجرام
الأبعاد 15.2 × 13.3 × 6.4 سنتيميتر

Specification

POWER
Power supply AC 110-230V ±10%, 50/60Hz
Power supply DC No
SPECIAL FUNCTIONS
Contactor Control Yes – max 10A
Roller shutter mode No
Device temperature protection No
Overload protection No
Power measurement Yes
FEATURES
In Box Included 3x Current Transformers 120A
Channels 3 Channel
Operational temperature 0°C to + 40 °C
Device power consumption < 1 W
Intelligent On/Off Yes
Local and remote control Yes
Sunrise/Sunset Yes
Weekly Schedule Yes
UL Listed option No
CONNECTIVITY
Wireless Yes
Wi-Fi Protocol 802.11 b/g/n
Wi-Fi Radio frequency 2412 – 2484 MHz
Wi-Fi Radio signal power 1mW
Wi-Fi Range up to 50 m outdoors and up to 30 m indoors (depending on the building materials)

Download

App guide

User and safety guide
